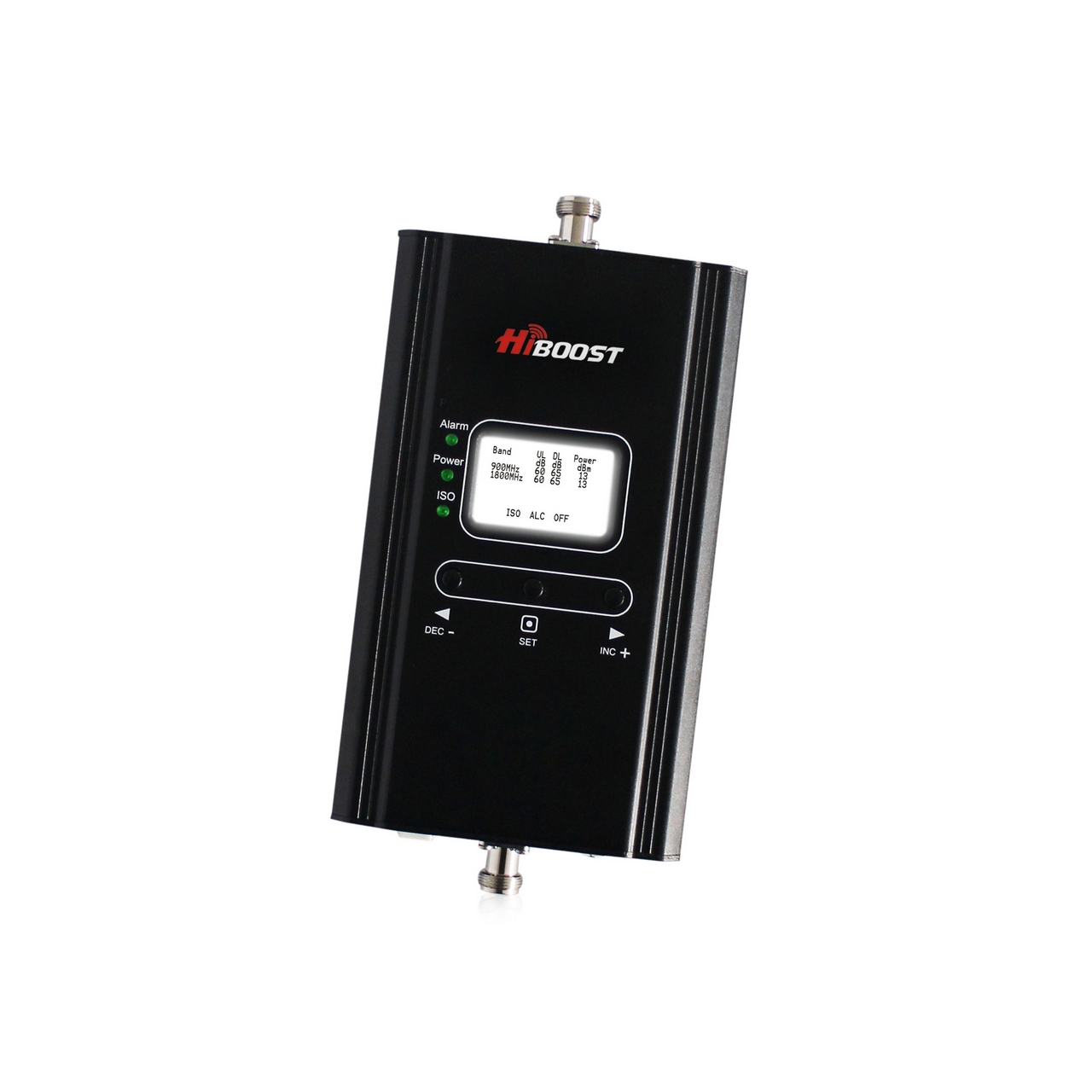

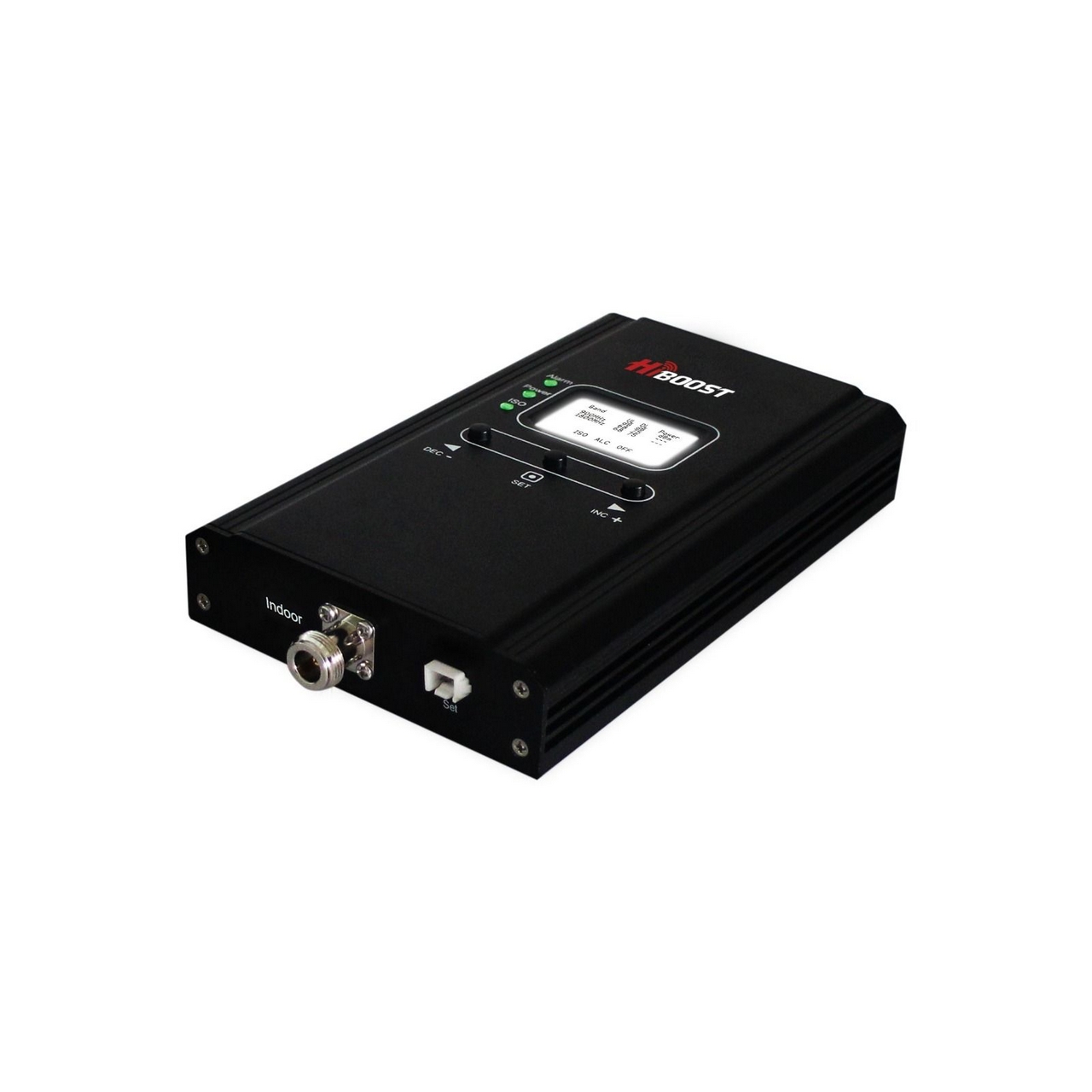

Hi13-ED :: 2-band Mobile Signal Repeater, EGSM/GSM/UMTS, LTE/DCS, 500 m²

SKU: Hi13-ED Categories: , ,
  • Network: EGSM/GSM/UMTS 900 MHz + LTE/DCS 1800 MHz
  • Coverage: medium areas up to 500 m²
  • Guarantees crystal clear calls + speedy 4G data
  • Real time LCD Display
  • Compatible with all major EU carriers
  • Full kit included
  • Smart system auto setup

Description

Stop unbearable hunting for good signal! Cellular signal repeater HiBoost Hi13-ED will strengthen reception and provide clear voice & fast 4G speeds in your area. You can install the device in your apartment, house, office and any other indoor zone. The coverage of the standard kit is up to 300 m², if you add one more indoor panel or omnidirectional antenna, the coverage will extend up to 500 m².Hi13-ED supports extended GSM network standard (EGSM), used by all major cellular operators in Europe and UK. If your carrier supports LTE/4G 1800 MHz as well, the equipment will bring speedy mobile 4G (1800 MHz) data into your place as well.Buy this cellular signal repeater now and get pleasure with reliable mobile connection!
*Mind that you should have at least 2-3 signal bars outside your house to make the booster provide overall strong signal enhancement. The device’s coverage also depends on building design features.

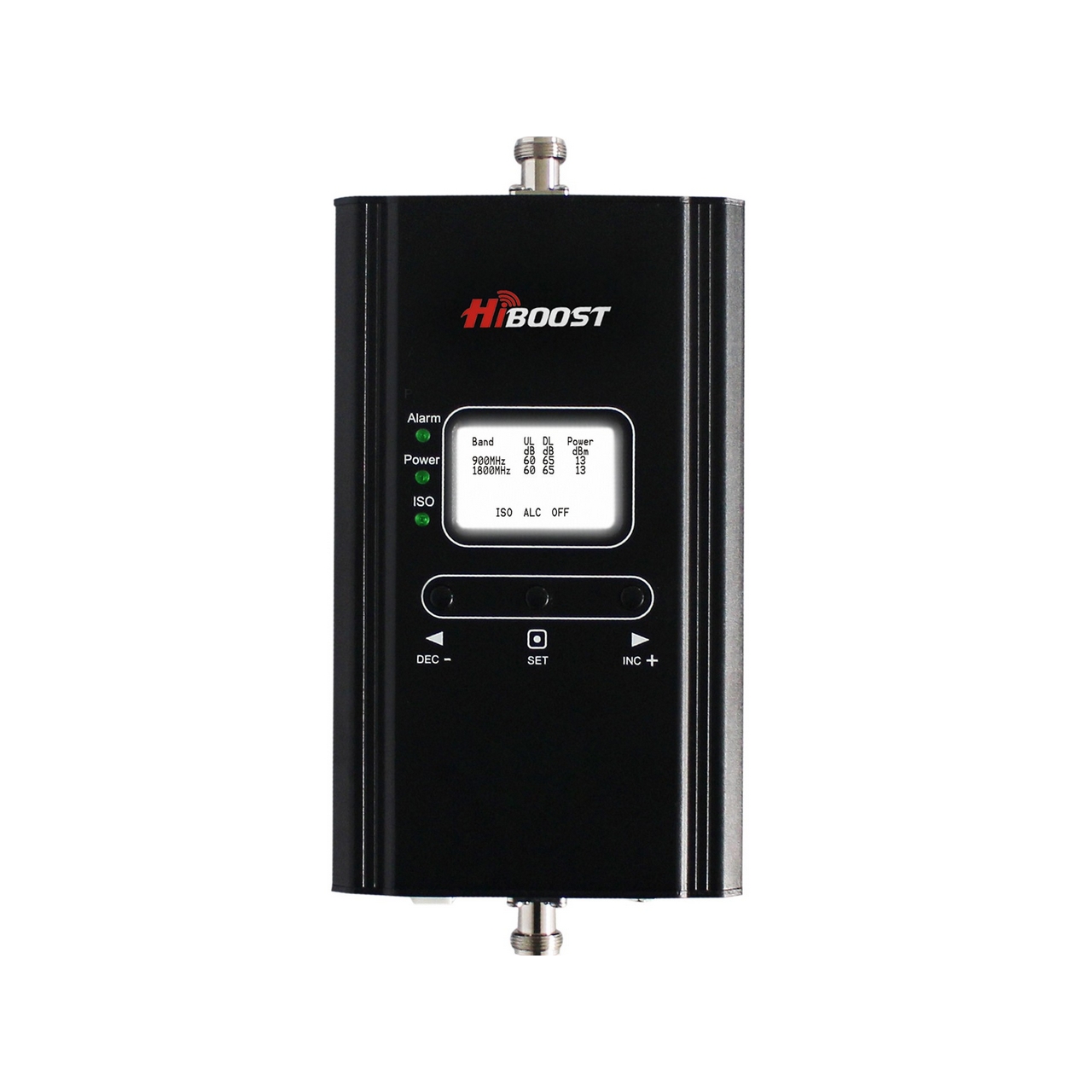

LCD Display

Real-Time Monitoring

Displays gain, frequency, and output power to let you keep control over the current working state.

Smart Troubleshooting

Detects and shows an exact kind of malfunction (ALC or ISO) giving you the cue what is necessary to fix.

Assistance in Installation

Helps to find best point for outdoor antenna mounting basing on the output power value displayed on the screen.

Smart Functions

Automatic Gain Control (AGC)

Intelligent System Setup

After the booster is on, AGC automatically measures input signal strength and adjusts best system parameters suitable for mobile signal reception conditions in your particular area.

Powerful Mobile Network Protection

AGC facilitates power control between the base station and a repeater to keep gain at the optimal level. This way HiBoost doesn’t overlap mobile network and keeps noise minimized up to zero.

Manual Gain Control (MGC)

The function lets you thoroughly adjust mobile signal amplification power on your own manually. Recommended for advanced users.

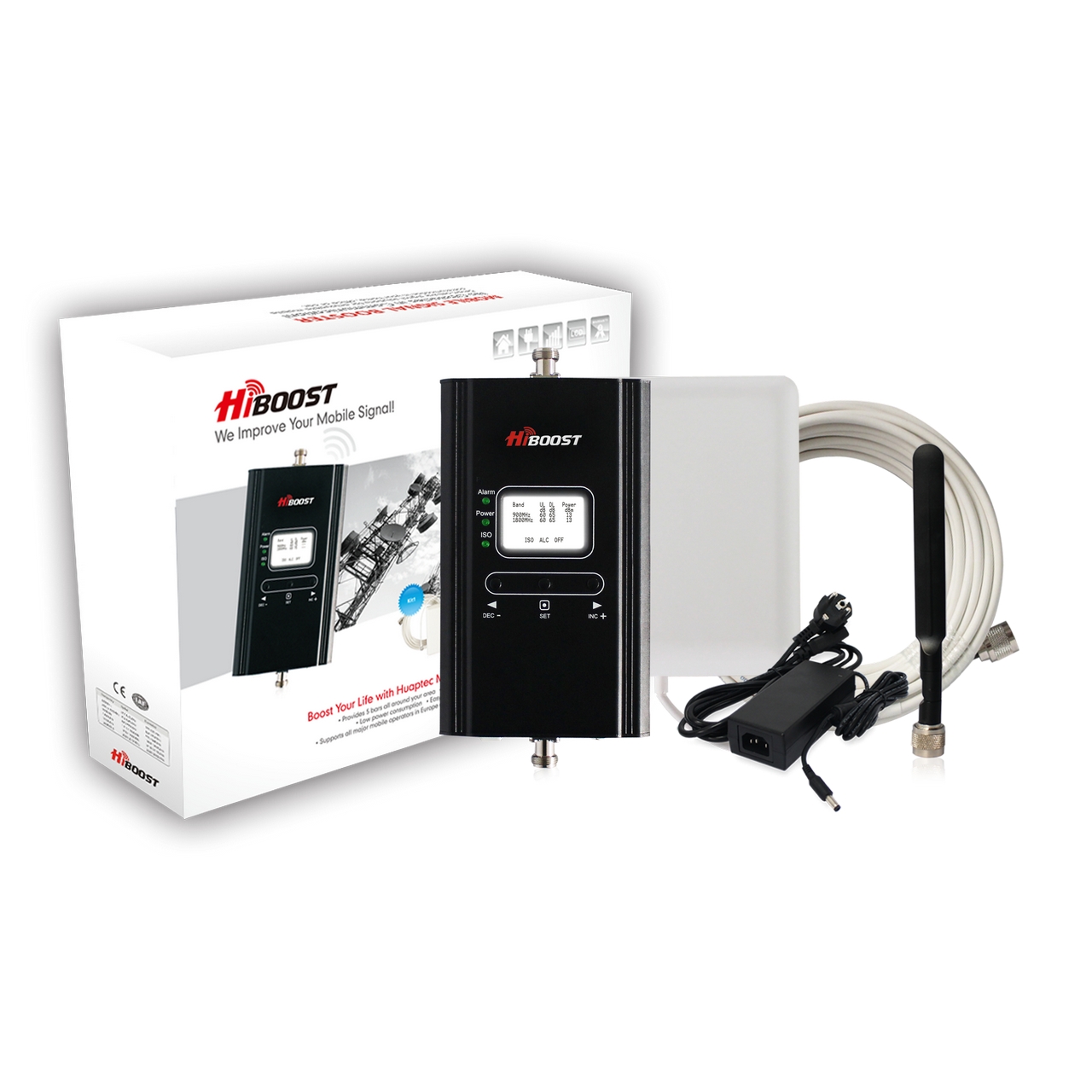

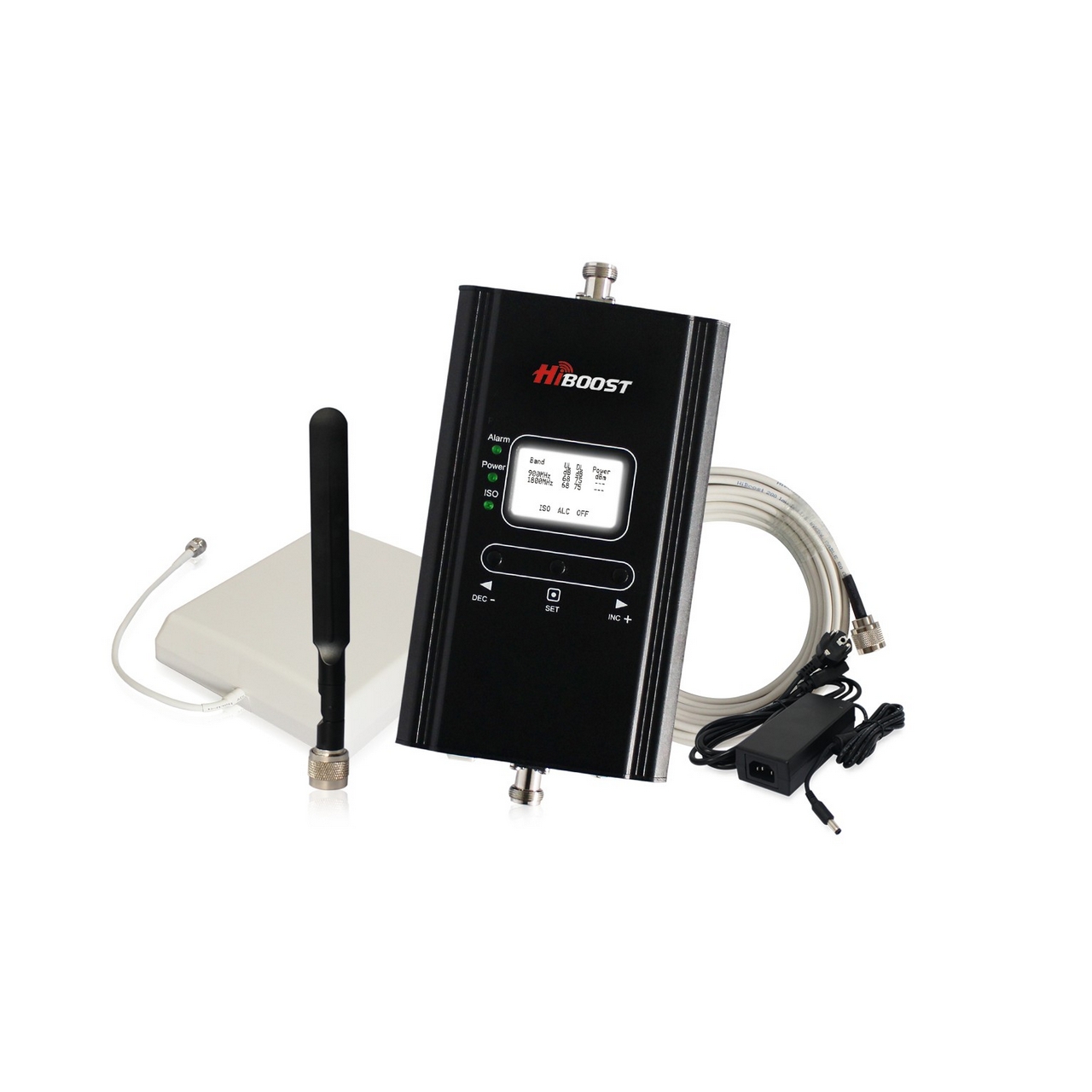

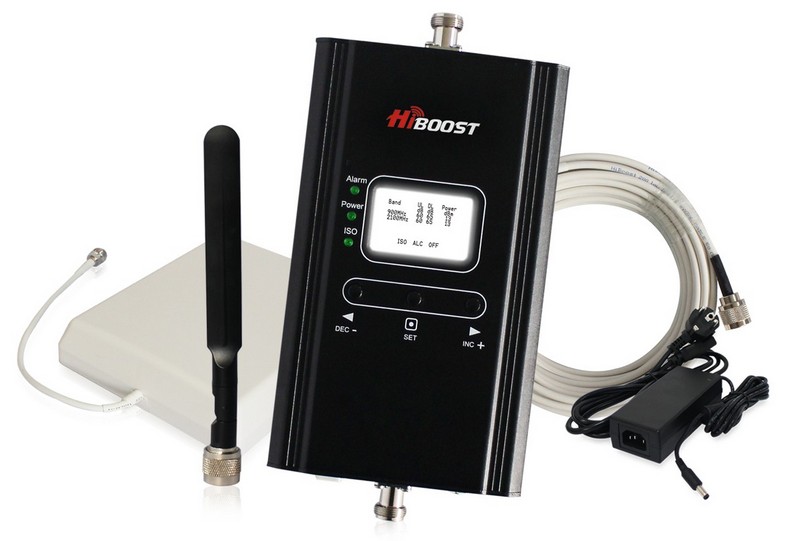

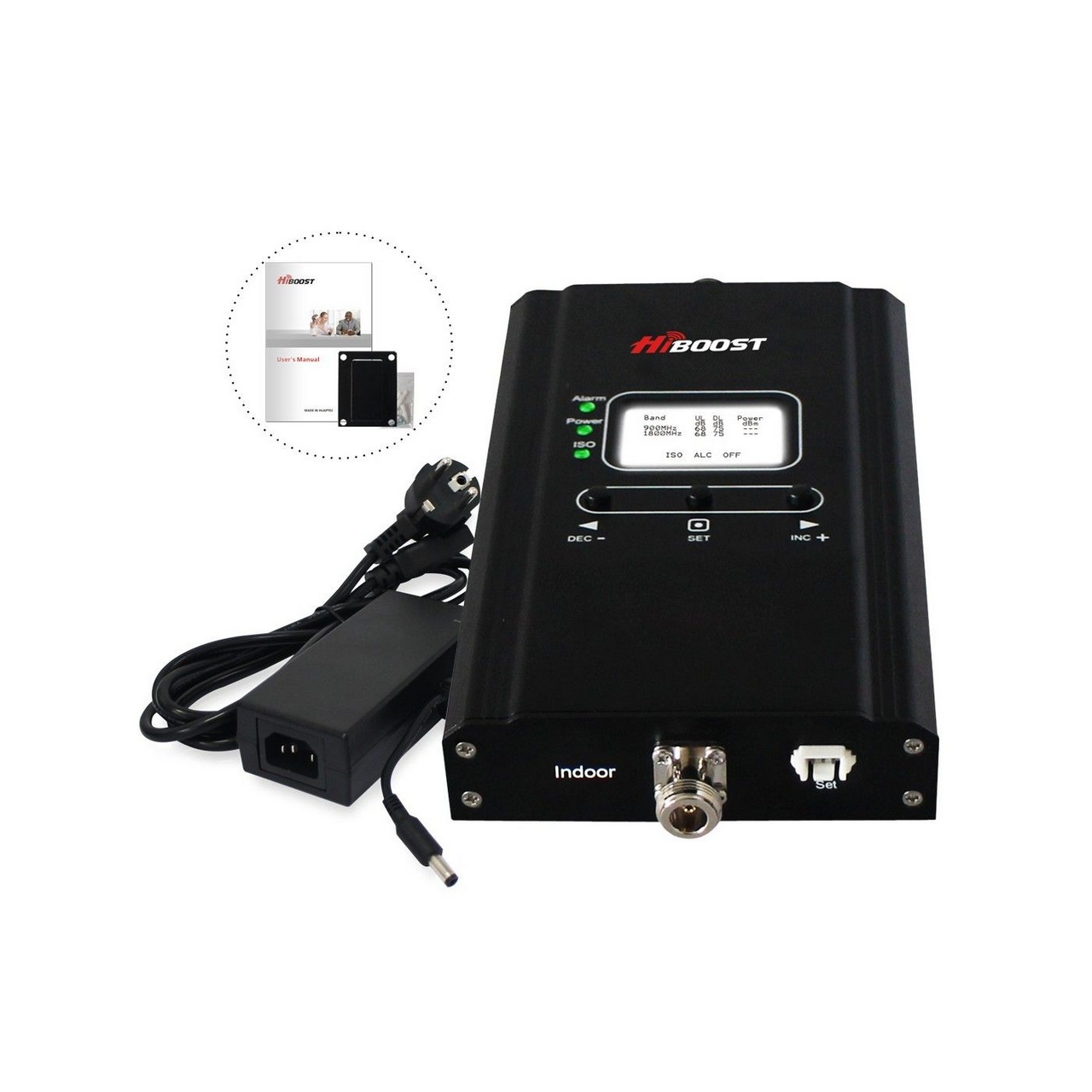

Standard Kit

HiBoost Hi13-ED model comes in a full kit with all the necessary installation components:

  1. a mobile signal booster
  2. an indoor whip antenna
  3. an outdoor panel antenna
  4. a cable of 15 m
  5. 12V/3A, AC/DC power adapter
  6. mountings
  7. a user manual

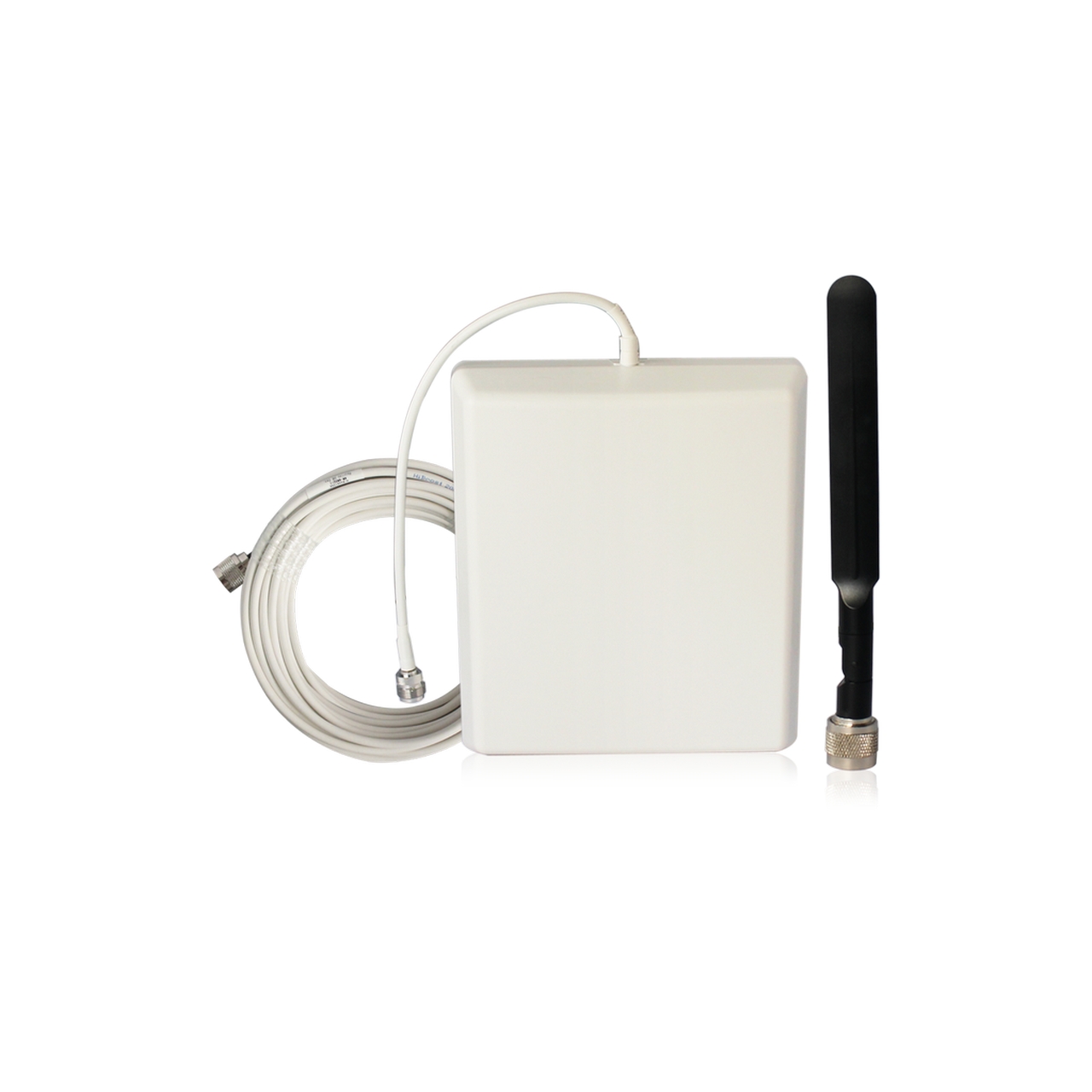

Optional Kits

If you need to extend a booster coverage area up to 500 sq.m., you can add an optional kit and replace an indoor whip antenna to a more powerful indoor panel or omni antenna.There’re 2 kinds of optional kits available:1) Panel Kit: indoor panel antenna, 50ft (15.2m) Hiboost200 cable2) Omni Kit: indoor omni ceiling antenna, 50ft (15.2m) Hiboost200 cableChoose a solution that best meets your needs! Omni Kit is ideal if it’s necessary to provide all round coverage, while Panel Kit is suitable if you need to focus the signal into a particular direction.

Certification

HiBoost product is officially certified for compliance with the international and European safety, quality and health regulations in the accredited test laboratories. Here’re the certificates we have:CE – with CE certification, we declare our product’s compliance with the requirements of the European health, safety and environmental protection legislation.RoHS – RoHS directive proves the limitation upon the usage of hazardous materials in HiBoost product and in its components.ISO 9001-2015 – HiBoost meets ISO 9001-2015 quality management systems standard that sets out the principles basing on strong customer focus, top management involvement and efficiency, consistent product quality improvement.

How It Works

1. The base station delivers a strong mobile signal, but can’t deliver it to your area
2. The outdoor antenna picks up a weak mobile signal from the base station
3. The signal goes from the outdoor antenna to the booster trough the cable
4. The booster amplifies the signal and transmits it to the indoor antenna
5. The indoor antenna spreads the boosted signal all around your area
6. Your mobile phone receives a strong signal and starts communicating with it

Additional information

COVERAGE

FREQUENCY

,

APPLICATION

NETWORK BANDS

SERVICE TYPE

,

Coverage Area 500 m²
Application Small Home&Office
Network Type Calls, 4G / LTE
Frequency 900 MHz (GSM/EGSM), 1800 MHz (DCS/LTE)
Frequency Range 880~915MHz (Uplink) 925~960MHz (Downlink), 1710~1785MHz (Uplink) 1805~1880MHz (Downlink)
Number Of Bands Dual Band
Max. Gain 60dB (Uplink) - 65dB (Downlink)
MGC (Step Attenuation) ≥ 31dB / 1 dB step, dip switch control
Intelligent AGC (ALC / ISO) ≥42 dB / ≥42 dB
Gain Flatness Typical ≤5 dB (P-P)
Noise Figure @ Max. System Gain Typical ≤5 dB
V.S.W.R Typical ≤2
Group Delay ≤ 1 μs
Frequency Stability ≤0.01 ppm
Power Supply Input AC90~264V.50/60Hz,Output DC 12V/3A
Power Consumption ≤10W
Input & Output Impedance 50 ohm
LCD Display Frequency, Gain, Output Power, ALC, ISO, etc.
Indication LEDs No
I /O Port Type N-Female
Dimensions 120*198*34 mm / 4.7*7.8*1.3 inch
Booster Weight 1 kg
Booster Weight with KIT 3.6 kg
Operating Temperature -10ºC~+55ºC
Storage Temperature -10ºC~+80ºC
Relative Humidity 5% - 95%
Barometric Pressure 55 kPa -106 kPa
Environment Conditions IP40
