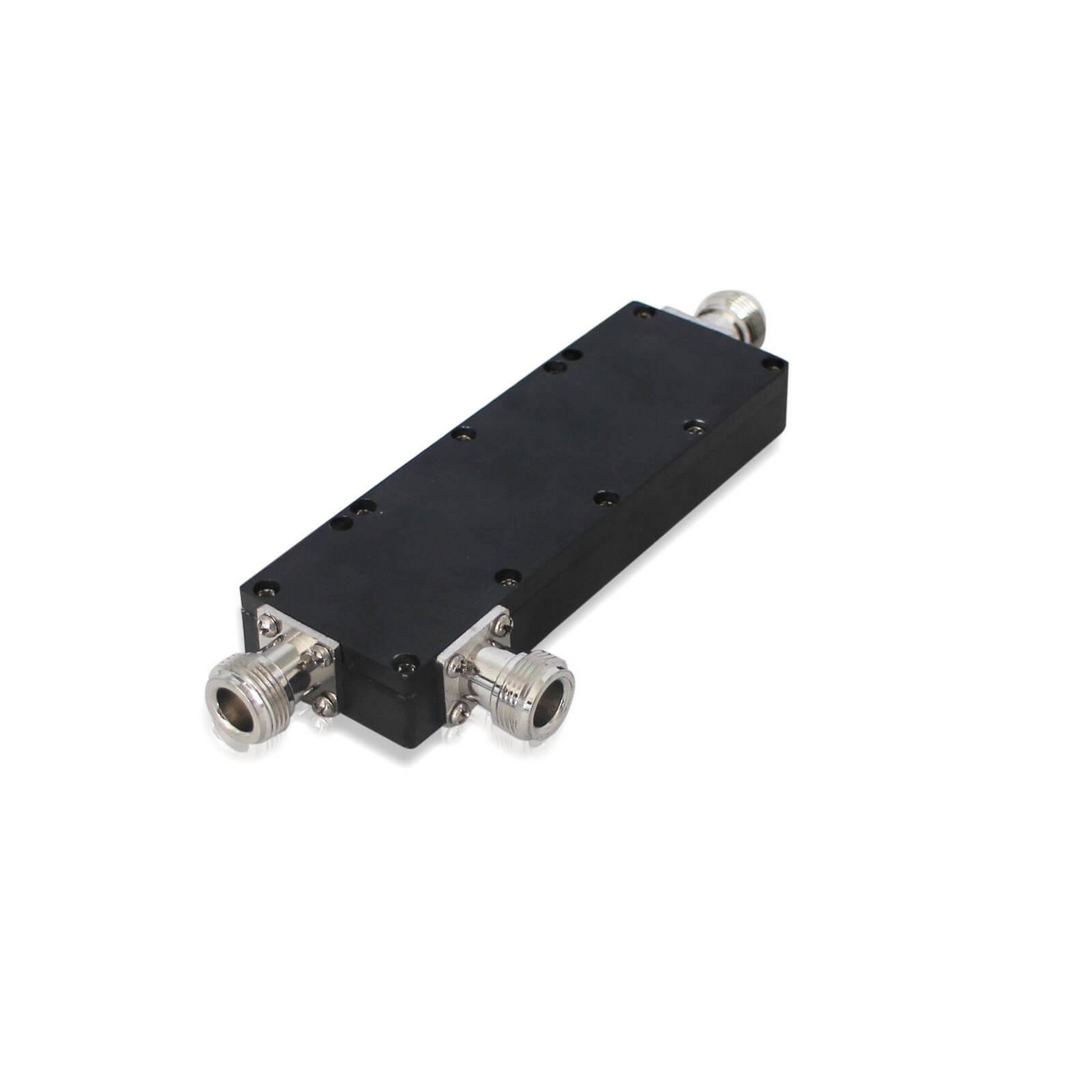

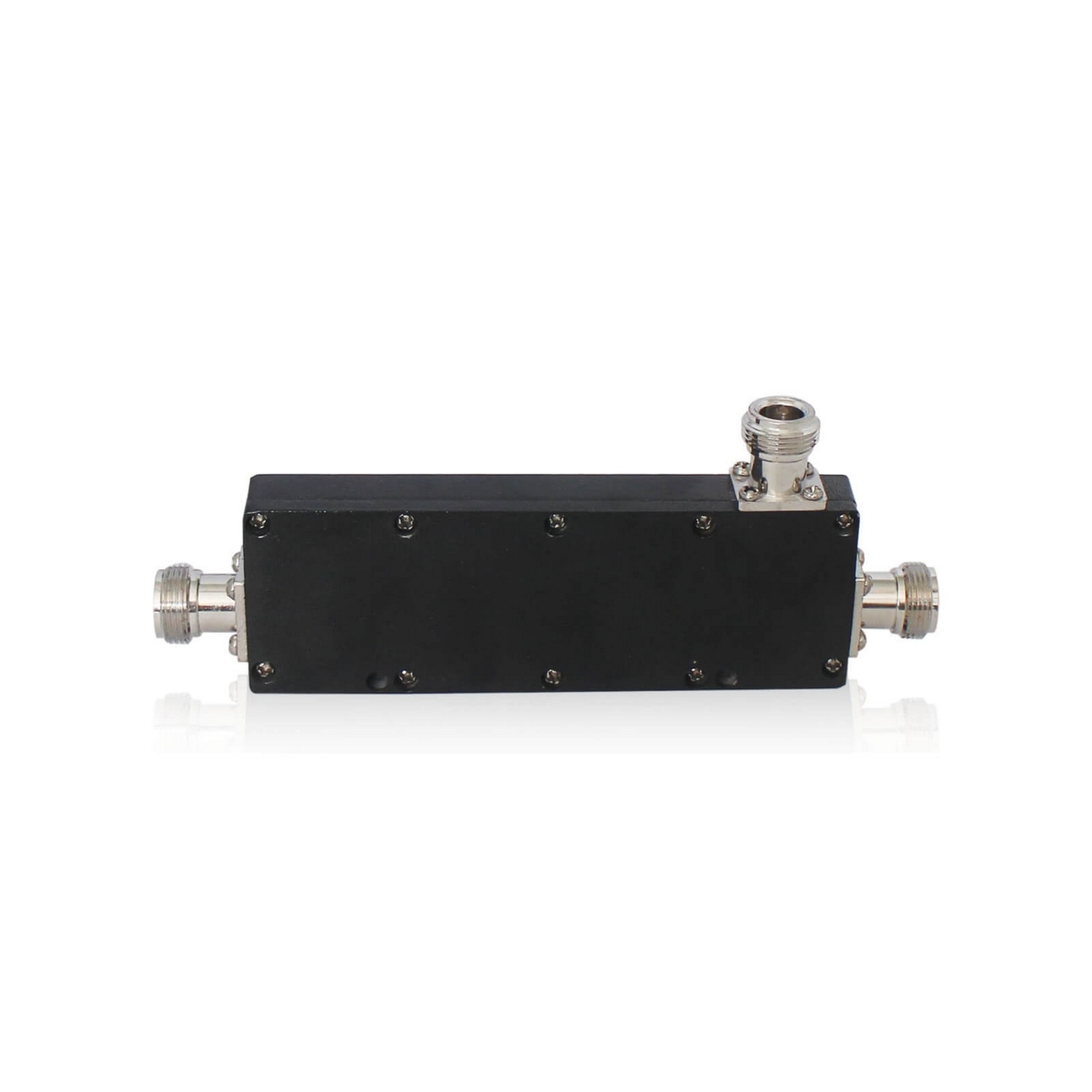

8dB Cavity Coupler

SKU: CC-8 Categories: ,

Coupler is used to focus more amplified signal to a specific area with a single repeater. This coupler is full band and covers GSM, DCS, UMTS and LTE

  • 8 dB gain
  • Easy to install
  • Meets international standards

Description

EXPAND YOUR COVERAGE

Cavity coupler is designed to focus more signal to a certain area.The accessory is to be used with 2 additional indoor antennas. The coupler is full band and supports GSM, DCS, UMTS and LTE networks from 698 to 2700 MHz.The accessory is suitable for all HiBoost mobile signal amplifiers.

COUPLER KEY FEATURES

  • Full band 698-2700 MHz
  • Gain 8 dB
  • N-female connector type

Frequency Range 698-2700 MHz
Coupling Loss 6dB – 1.7dB/ 10dB – 0.8 dB/ 15dB – 0.4dB/ 20dB – 0.3dB/ 30dB – 0.25dB
Isolation ≥20dB
Input Impedance 50Ω
VSWR ≤ 1.30
Power Capacity 200 W
Connector Type N-Female
Weight 0.3 KG
Color Black
Operating Temperature -35°~+60°
