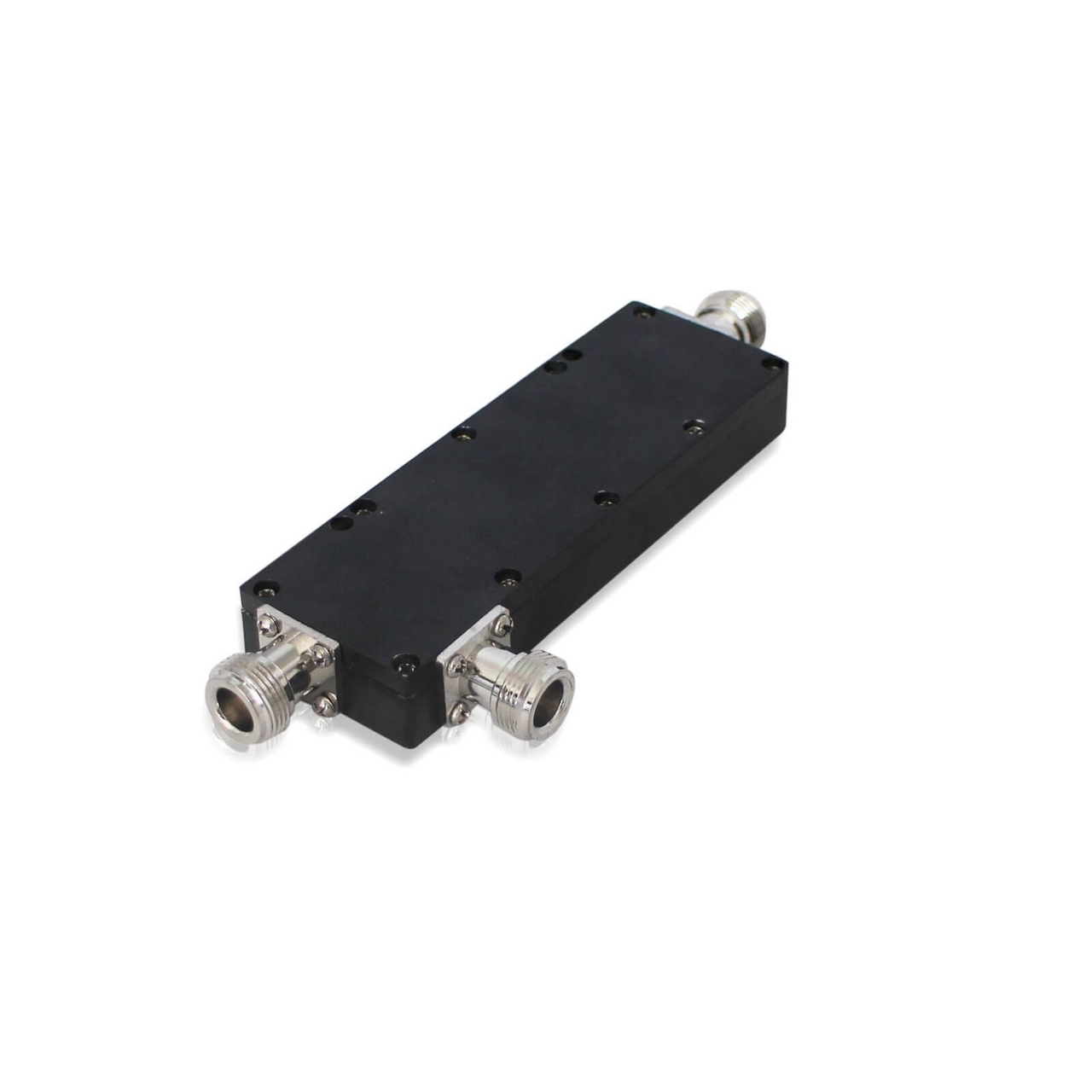

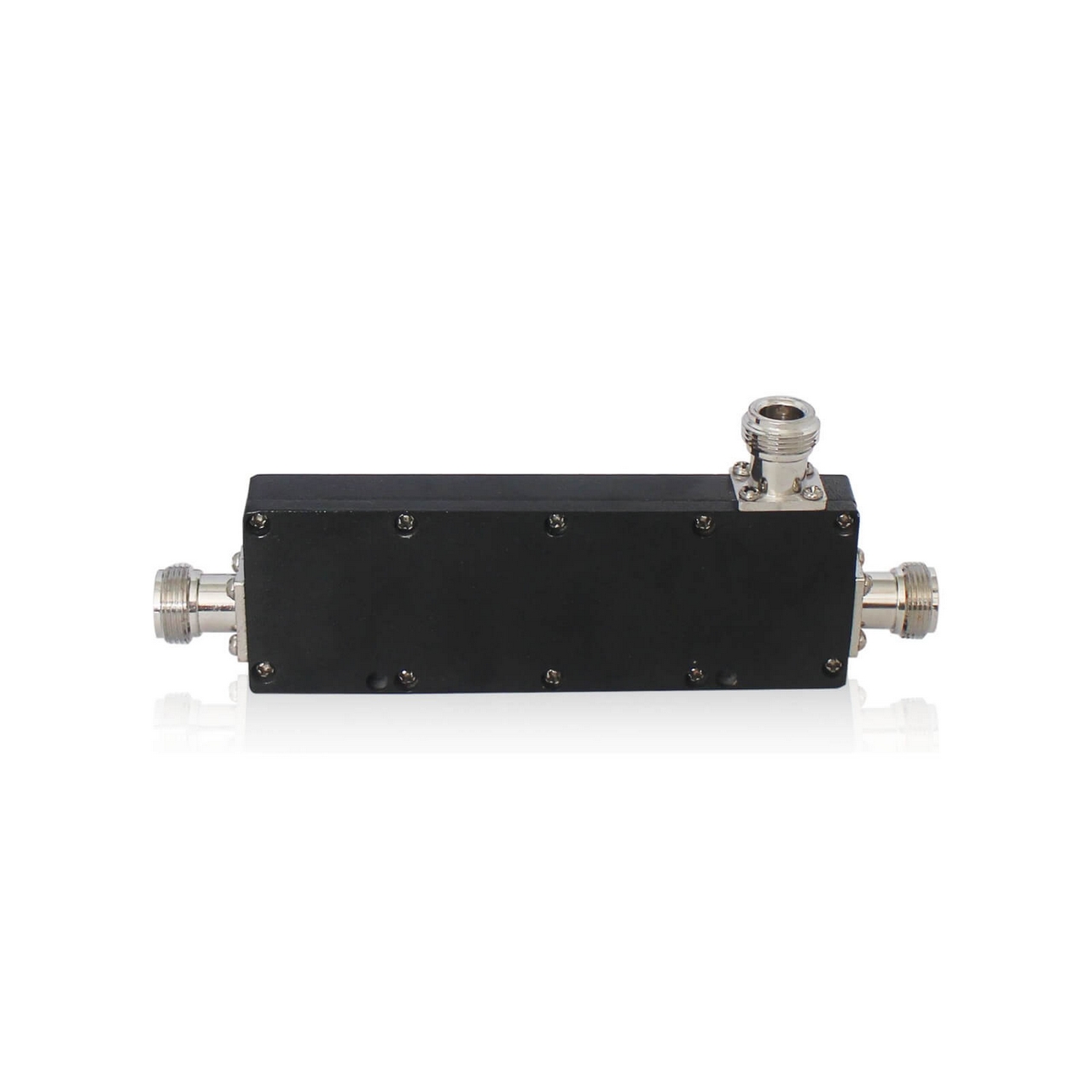

5dB Cavity Coupler
Coupler is used to focus more amplified signals to a specific area with a single repeater. This coupler is full band and covers GSM, DCS, UMTS and LTE
- 5 dB gain
- Easy to install
- Meets international standards
Description
EXPAND YOUR COVERAGE
Cavity coupler is designed to focus more signal to a certain area.The accessory is to be used with 2 additional indoor antennas.The coupler is full band and supports GSM, DCS, UMTS and LTE networks from 698 to 2700 MHz.The accessory is suitable for all HiBoost mobile signal amplifiers.
COUPLER KEY FEATURES
- Full band 698-2700 MHz
- Gain 5 dB
- N-female connector type
| Frequency Range | 698-2700 MHz |
|---|---|
| Coupling Loss | 6dB – 1.7dB/ 10dB – 0.8 dB/ 15dB – 0.4dB/ 20dB – 0.3dB/ 30dB – 0.25dB |
| Isolation | ≥20dB |
| Input Impedance | 50Ω |
| VSWR | ≤ 1.30 |
| Power Capacity | 200 W |
| Connector Type | N-Female |
| Weight | 0.3 KG |
| Color | Black |
| Operating Temperature | -35℃~+60℃ |
