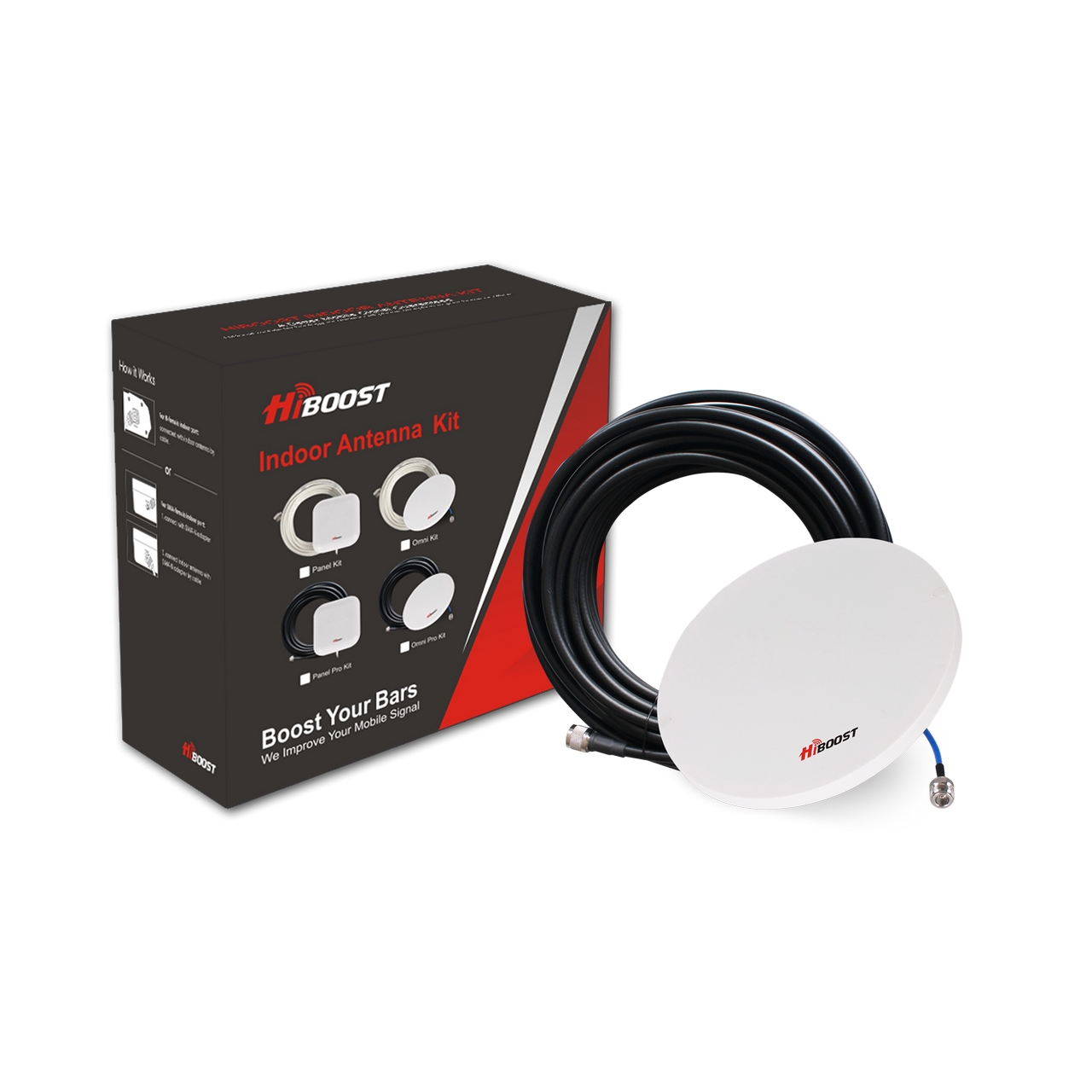

Omni PRO Kit – Indoor Omnidirectional Antenna + 10.6 m 5D-FB Cable

SKU: 80784 Categories: ,
  • 10,6m/ 35ft 5D-FB cable
  • Broad band (698-2700 MHz) indoor omni antenna
  • Compact & light-weight
  • Easy to install & weatherproof
  • Low return loss, stable performance

Description

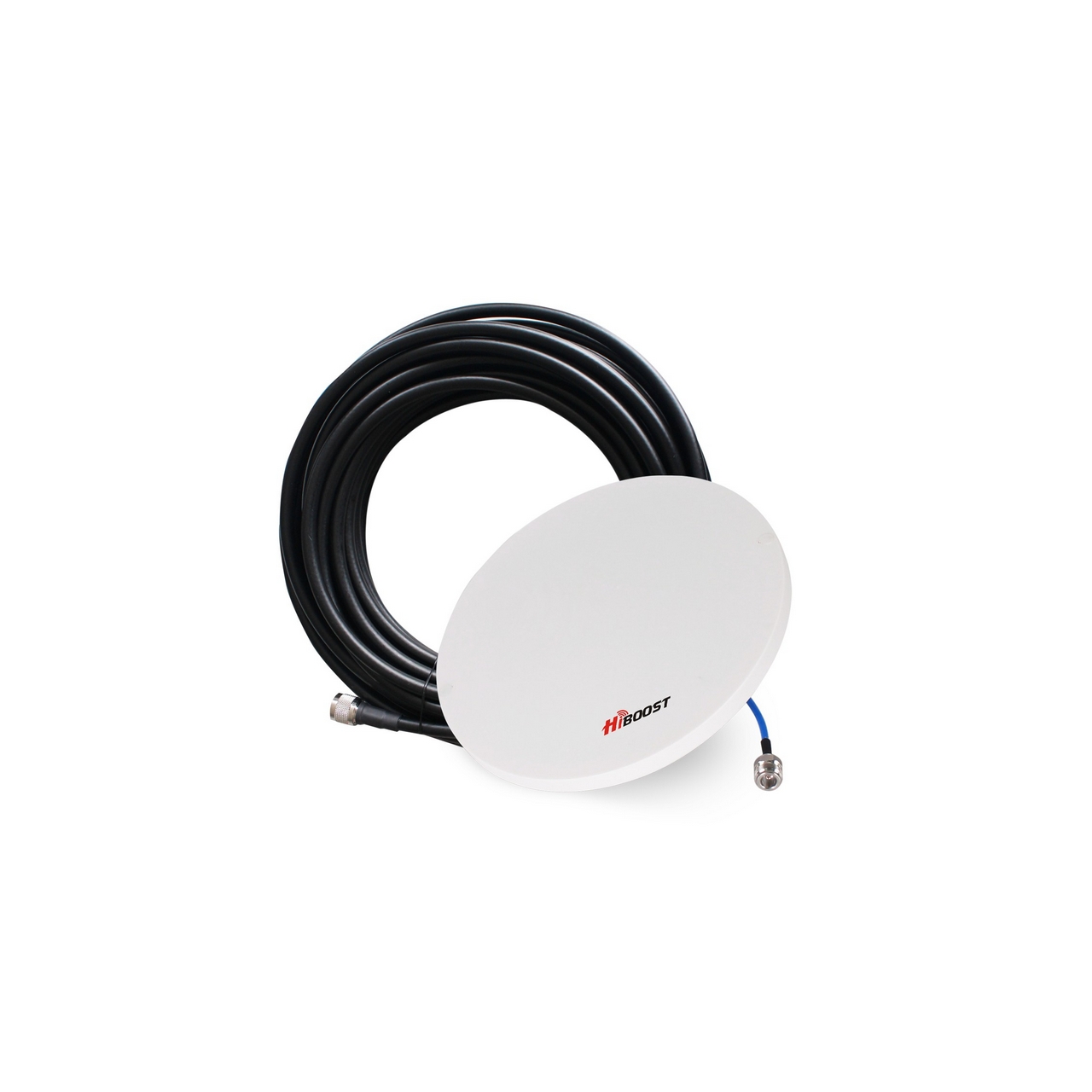

HiBoost Omni PRO is an optional set of accessories used to enlarge booster coverage area. It’s mainly suitable for high-power HiBoost models. Since an omni antenna broadcasts signal in 360 degrees, the kit is perfect to provide all-round area.Omni PRO Kit includes:

  1. indoor omnidirectional antenna
  2. 35ft/10.6m HiBoost 300 5D-FB cable

PLEASE NOTE: If you use a cable, which is longer than the one from your kit, mind that your booster can lose power and provide worse mobile signal amplification.

Additional information

ANTENNA

,

HiBoost 300 Cable

Cable Construction

Project Material Diameter (mm)
Inner conductor Copper Clad Aluminum 1.80
Insulation Layer Foam Polyethylene(FPE) 5.00
Outer conductor Aluminum Tape and Aluminum Magnesium Alloy Braiding 5.60
Jacket Polyviny1 Chloride(PVC) 7.50

Electrical Properties and Mechanical Parameter

Characteristic Impedance (ohm) 50
Rated Capacitance(pF/m) 81
Velocity of Propagation(%) 82
Operating Frequency 1~6000 MHz
Operating Temperature(℃) -25~+70
Minimum Bending Radius 75mm
VSWR 1~3000MHz≤1.20

Attenuation at Typical Frequencies

Frequency (MHz) Attenuation(dB/100m)
400 MHz 13.00
900 MHz 23.7
1500 MHz 26.8
1800 MHz 29.7
2000 MHz 31.5
2500 MHz 35.8
3000 MHz 40.6
6000 MHz 66.5

Indoor Omnidirectional Antenna

Frequency Range 698-806/806-960/1710-2700MHz
Gain 2.2±0.5/3.5±0.5/4.5±1.0
Polarization Horizonta
VSWR ≤1.5
PIM, 3rd Order, 2 x 2 W ≤-140dBc
Input Impedance 50Ω
Maximum Power 50W
Connection Type N-Female
Weight 0,3 kg
Dimension Φ220*18mm
Lighting Protection DC Ground
Mounting Kit Ceiling, via hole (standard)
Operational Temperature -55 to +60℃
Operational Humidity < 95%
